Transmesenteric approach in the surgical treatment of left kidney cancer with venous tumor thrombus of Mayo levels 0–I

Full Text

INTRODUCTION

Renal cell cancer (RCC) remains a significant oncological problem in many countries [1]. According to the GLOBOCAN report, a total of 434,480 new cases of renal cancer were registered worldwide in 2022, and there is a tendency for the morbidity rate to grow (considering improved visualization techniques, demographic changes and such risk factors as obesity and arterial hypertension) [2]. In Russia, every year approx. 25,000 new cases of renal cancer are registered [3]. Epidemiologic data show that the age-standardized incidence rate in the Russian Federation is ca. 13-14 cases per 100,000 population for both men and women [4]. One of the characteristic features of RCC is the venous extension of the tumor: the venous tumor thrombus (VTT) is found in approx. 10% patients with RCC [5]. The growth of the thrombus level complicates the surgical approach, increases the risk of complications and impacts the prognosis [6].

To describe the incidence rate of the VTT, the Mayo classification is widely used (also known as the Mayo grading, or Mayo levels). Accordingly, the following levels are identified: 0 – tumor thrombus is limited to the renal vein; I – tumor thrombus extends to the inferior vena cava (IVC), apex < 2 cm from the venous entry; II – tumor thrombus extends into the IVC more than 2 cm above the entry but below the hepatic veins; III – tumor thrombus extends above the level of hepatic veins but below the diaphragm; IV – tumor thrombus extends above the diaphragm and may extend to the right atrium [7, 8].

The survival of RCC patients largely depends on the level of VTT and the presence of metastases, condition of lymph nodes and attendant characteristics of the tumor [9, 10]. In the Mayo Clinic experiment that analyzed 540 RCC patients and tumor thrombus over three decades, the five-year specific survival at thrombus level 0 was ca. 49.1%, while with the involvement of the IVC (levels I–II–III–IV), it was significantly lower (e.g., level I, ~31,7%, level II, ~26,3%) [11].

The study of Z. Chen et al. (2021), including 121 patients, demonstrated higher values of overall survival (OS) in thrombus levels 0 and I: 3-year OS was approx. 59%, 5-year OS, approx. 47%, in higher thrombus levels, 5-year OS lowered to ~32% [12]. In patients with thrombus levels 0–II, 5-year survival was approx. 46.7% [13]. Russian literary sources also report an increase in the diagnosing of the renal cancer, including that of early stages [14].

However, the data on the prevalence of the venous thrombosis, especially on levels 0–I, as well as detailed survival values for such patients in the Russian practice remain insufficient and fragmentary [15].

While the treatment standard of the renal cancer with venous tumor thrombus is the radical nephrectomy with thrombectomy, the technical aspects of the surgery remain a subject of discussion [16]. In order to adequately mobilize the left kidney, the traditional laparoscopic access requires dissection of the lienocolic and splenophrenic ligaments, as well as mobilization of the descending colon [14]. This increases the duration of the operation and involves risk of damaging the wall of the colon and of the spleen, which might result in serious intra- and postoperative complications.

Another problem is the necessity of mobilization of the ascending colon to ensure access to retroperitoneal space if the tumor thrombus has extended into the inferior vena cava [17]. Such manipulations involve the risk of injuring the liver and increase the probability of development of postoperative peritoneal adhesions and intestinal obstruction [18]. This necessitates development of new surgical methods that enable minimization of injury and improve results of surgery while preserving its radicality.

The designed method of laparoscopic mesenteric approach to the left kidney covered by the Russian Federation patent No.2803686 (dated 19.09.2023) enables minimization of the risks of the standard approach ¹. The access is achieved through the mesentery of the sigmoid colon, which excludes the necessity of mobilization of the mobilization of the descending colon and dissection of the lienocolic and splenophrenic ligaments. The method lowers the risk of injury of the colon and the spleen, reduces surgery time and increases its safety while providing an adequate approach to the inferior vena cava without a large-scale mobilization of the ascending colon. This reduces the probability of injuring the liver as well as the risk of postoperative adhesions. The surgery is performed with the patient in the supine position, ergonomically optimal both for the team of surgeons and anesthesiologists and for the patient. Lack of necessity of changing the body position during the operation further decreases the risks of implantation metastases and of the loss of sterility of the surgical area. Transmesenteric approach combines minimized injury, comfort of the patient’s and the surgeon’s positioning, as well as reproducibility, which allows regarding the method as an alternative to the standard laparoscopic approach.

AIM

To evaluate the efficacy and safety of using the original transmesenteric approach for laparoscopic nephrectomy with thrombectomy in patients with left kidney cancer and venous tumor thrombus (levels 0-I according to the Mayo classification).

MATERIAL AND METHODS

The study included 19 patients with histologically verified left kidney cancer with venous tumor thrombus who underwent laparoscopic nephrectomy with thrombectomy using a transmesenteric approach. Eleven patients had renal vein thrombus (Mayo level 0), and eight patients had thrombus extending into the inferior vena cava up to 2 cm from the renal vein orifice (Mayo level I).

Inclusion criteria: patients with left kidney cancer and venous tumor thrombus of levels 0-I as per Mayo classification, no remote metastases, ECOG 0-2 somatic status.

Exclusion criteria: identification of level II-IV thrombus, bilateral damage, severe comorbidities precluding the feasibility of laparoscopic intervention.

The surgical technique is illustrated with intraoperative images: formation of a ‘window’ in the mesentery of the descending colon and the final formed tramsmesenteric approach to the left kidney with visualization of the left renal vein (Fig. 1).



Figure 1. Stages of transmesenteric approach formation: a – creation of a window in the mesentery of the descending colon; b – completed access to the left kidney, left renal vein with tumor thrombus in its lumen.

Рисунок 1. Этапы формирования трансмезентериального доступа: a – формирование «окна» в брыжейке нисходящей ободочной кишки; b – сформированный доступ к левой почке, левая почечная вена с опухолевым тромбом в ее просвете.



Study design: prospective single-center study.

Assessed parameters: age, body mass index (BMI), duration of the surgery, blood loss, duration of hospital stay, status of early (less than 30 days) and ate complications. The efficacy of the method was assessed with the feasibility of radical surgery without the need of conversion, level of blood loss and duration of the surgery. The safety was assessed with the aid of frequency of complications and specific features of the postoperative period.

Statistical processing of data was performed in the standard software suites (MedCalc; Microsoft Excel 2019). Quantitative indicators were described using mean values (M), standard deviation (SD), median (Me), minimum and maximum values, as well as 95% of confidence intervals (95% CI). The normality of quantitative data distribution was assessed using the Shapiro-Wilk test. For variables with approximately normal distribution, the single-sample Student’s t-test was used. In cases of deviation from normality, the Wilcoxon signed-rank test was additionally applied. All comparisons were conducted using two-tailed tests at a statistical significance level of p < 0.05. For visual representation of the results, graphical visualization methods were used: histograms were constructed for the distribution of age, BMI, blood loss volume, duration of the surgery, and length of hospital stay (bed-days).

RESULTS

Out of the 19 patients with left kidney cancer, in 11 (57.9%) patients the thrombus was in the renal vein (level 0); in 8 (42.1%) patients, the thrombus extended to the inferior vena cava up to 2 from the renal vein orifice (level I).

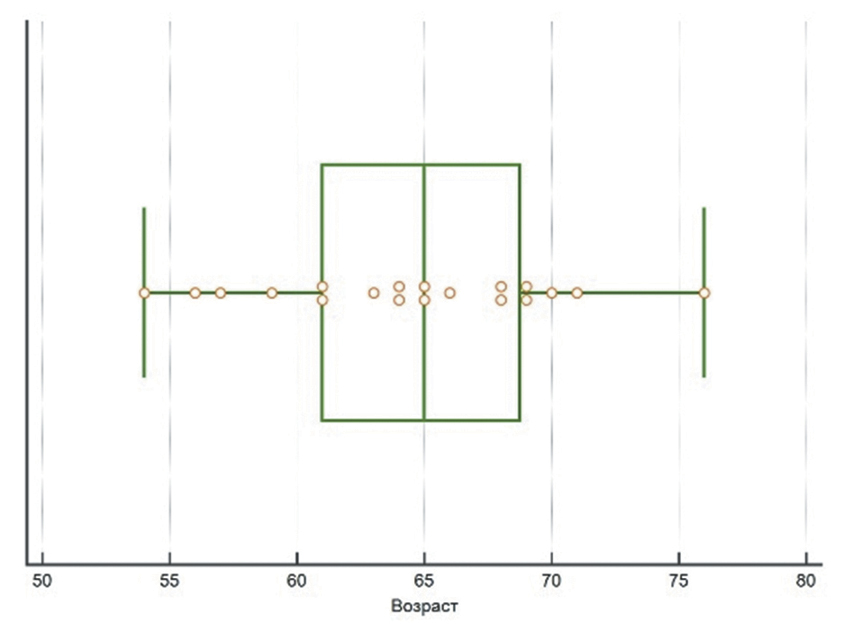

The age of the patients varied from 54 to 76 years, the average age being 64.5 ± 5.6 years, median: 65 years (95% CI 61.8–67.2). Fig. 2 shows patient distribution by age matching the symmetric normal distribution.



Figure 2. Distribution of patient age in the study cohort (n = 19).

Рисунок 2. Распределение возраста пациентов, включенных в исследование (n = 19).

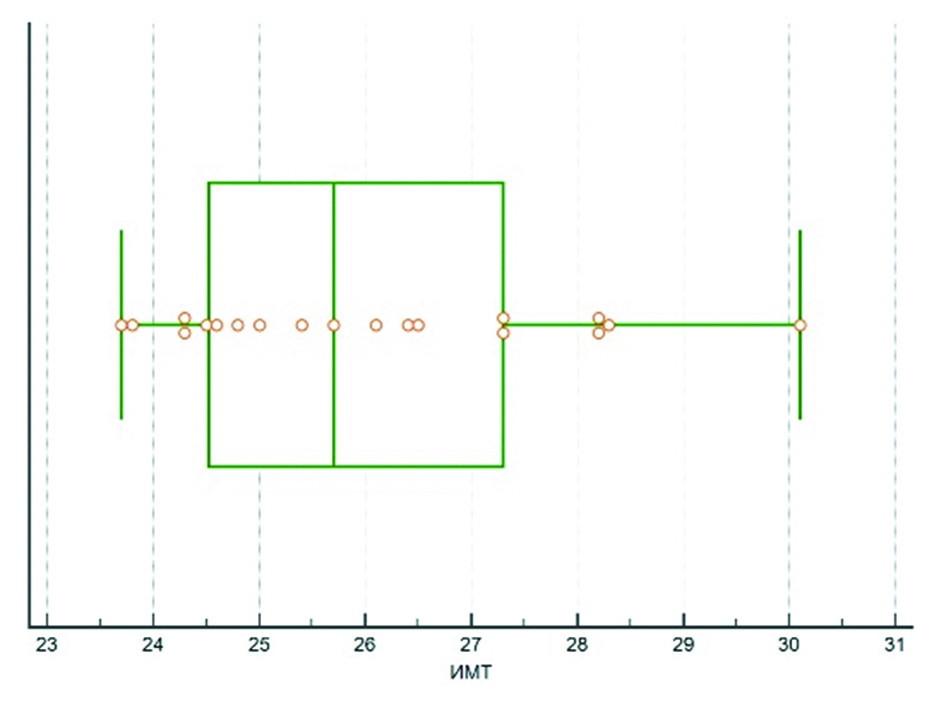

The mean BMI values was 26.0 ± 1.8 kg/m² (23.7 to 30.1 kg/m²), median: 25.7 kg/m². The majority of patients had a normal or moderately elevated BMI, which is characteristic of the general distribution for individuals of this age group (Fig. 3).



Figure 3. Distribution of body mass index (BMI) in the study cohort (n = 19).

Рисунок 3. Распределение индекса массы тела (ИМТ) пациентов, включенных в исследование (n = 19).

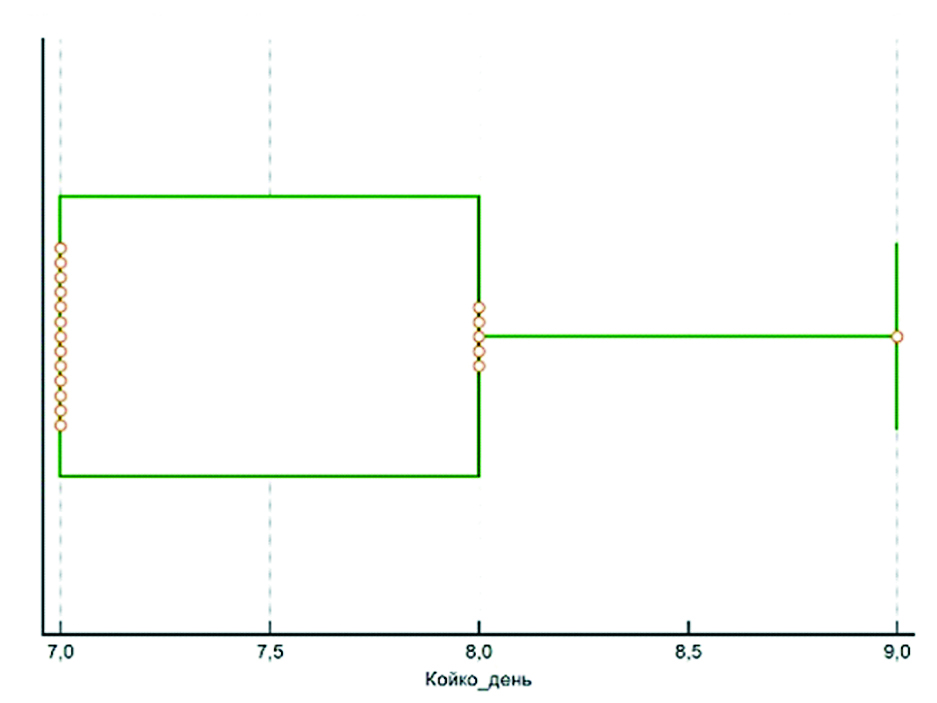

The mean duration of hospital stay was 7.4 ± 0.6 days (7 to 9), median: 7 days (Fig. 4).



Figure 4. Distribution of hospital stay (bed-days) in the study cohort (n = 19).

Рисунок 4. Распределение длительности госпитализации (койко-день) у пациентов, включенных в исследование (n = 19).



The majority of patients were discharged within the first week after the operation, which reflects the relatively low surgical injury of the operation and the favorable progression of the postoperative period.

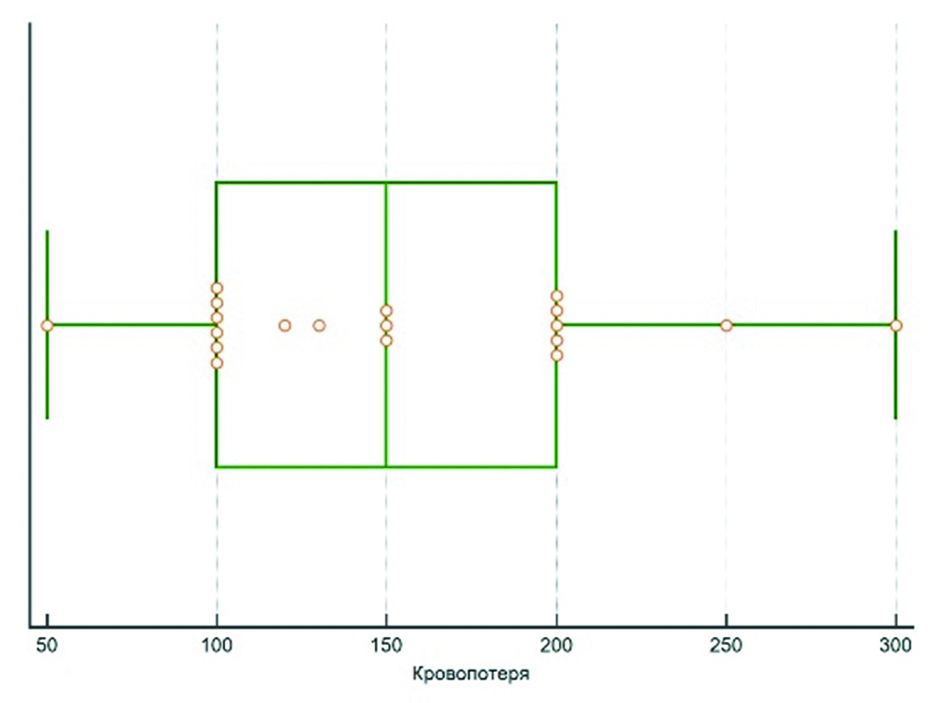

The mean volume of intraoperative blood loss was 152.6 ± 62.9 mL (from 50 to 300 mL), median: 150 mL. In the majority of patients, the blood loss volume did not exceed 200 mL, confirming low surgical injury and sufficient visualization of the surgical area when using the transmesenteric approach (Fig. 5).



Figure 5. Distribution of intraoperative blood loss in the study cohort (n = 19).

Рисунок 5. Распределение объема интраоперационной кровопотери у пациентов, включенных в исследование (n = 19).

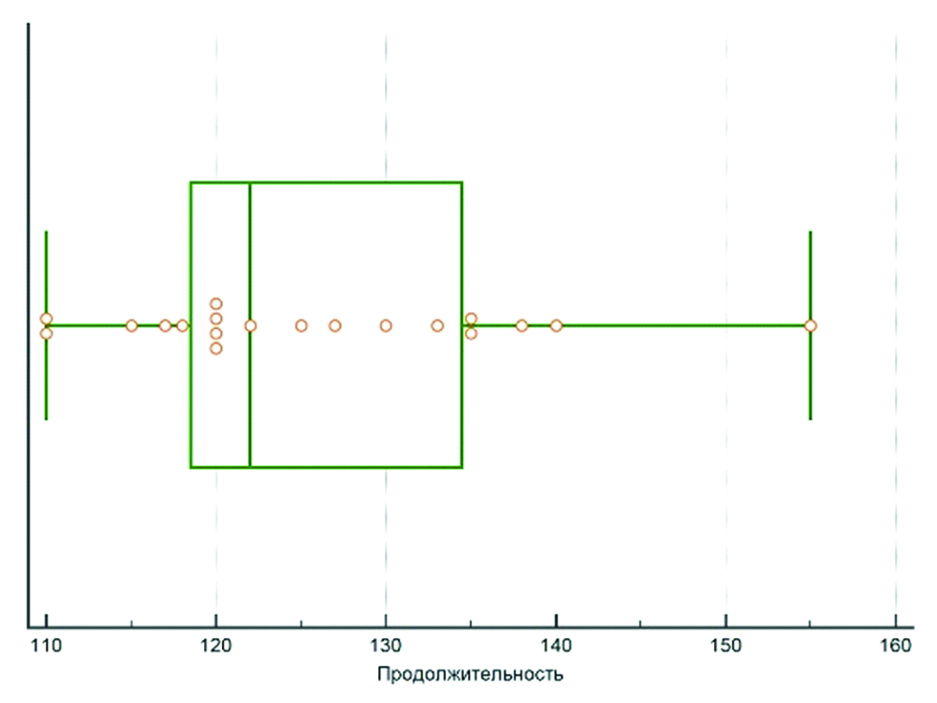

The mean duration of the laparoscopic nephrectomy with thrombectomy using a transmesenteric approach was 125.8 ± 11.4 minutes (110 to 155 min.), median: 122 minutes. The majority of surgeries lasted from 2 to 2.5 hours which is either comparable or less than series using the standard laparoscopic approach (Fig. 6).



Figure 6. Distribution of operative time in the study cohort (n = 19).

Рисунок 6. Распределение продолжительности операций у пациентов, включенных в исследование (n = 19).



DISCUSSION

The obtained results indicate that the use of the transmesenteric approach in laparoscopic nephrectomy with thrombectomy in patients with Mayo level 0-I tumor thrombus enables high efficacy and safety. When comparing it with the literature data, our findings were more favorable: in the studies of P. Dell’Oglio et al. (2024), the average duration of such surgeries was 180–240 min., and the volume of blood loss often exceeded 500 mL [19]; in the retrospective series of Z. Chen et al. (2021), the average blood loss reached 400 mL, with complications observed in 15-20% of patients [12]. Thus, the transmesenteric approach allowed for a substantial minimization of the surgical trauma and ensure a high level of safety. The average duration of the surgery was 125.8 min., average blood loss was 152.6 mL, average duration of the hospital stay was 7.4 days; no complications or conversions to an open surgery were reported. These indicators are either comparable or superior to the data found in literature for standard laparoscopic surgeries [20].

The major advantage of the transmesenteric approach described in the Russian Federation patent No. 2803686 (2023) is lack of necessity to mobilize the descending colon and dissection of the splenic ligaments when approaching the left kidney. The additional factor favorable for the outcomes is the possibility of accessing the IVC without mobilization of the ascending colon, lowering the probability of liver injury and the risk of adhesion complications.

A significant advantage is the performance of the surgery with the patient in the supine position, which ensures ergonomics for the surgical team and optimal conditions for anesthetic management. The absence of the need for patient repositioning reduces surgery time, decreases the likelihood of compromised sterility, and lowers the risks of tumor migration and implantation metastasis. Combined, these factors demonstrate the suggested approach as a safer, physiological alternative to the standard laparoscopic approach in cases of renal cancer with low-level thrombosis.

The limitations of this study are the low size of the sample and the single-center character of observation, which precludes extrapolation of the obtained data to a wider cohort. Besides, the study assessed only the early results without the analysis of the remote oncological outcomes. Nevertheless, the obtained data confirm the prospects and the reproducibility of the method forming the foundation for its further use in clinical practice.

The presented results show that the transmesenteric approach offers a number of advantages, making it potentially applicable not only in laparoscopic surgery but also in the context of robot-assisted interventions. The ergonomics of access with the patient in the supine position fully meets the capabilities of robotic complexes, and the excluded need for mobilization of the colon simplifies the dissection stages and reduces operative time, which is especially important in the conditions of operating space and necessity of least invasive manipulations with the vessels.

A promising direction is the expansion of indications for the use of the transmesenteric approach in Mayo level II venous tumor thrombus. With this level of IVC involvement, a much wider surgical access is required, which is associated with an increased risk of complications. At the same time, the anatomic specifics of transmesenteric approach allow for a direct adequate view of vascular structures, which could theoretically improve the safety of operations for this category of patients. The final verification of these advantages requires studies on larger cohorts of patients including both laparoscopic and robot-assisted operations, as well as analysis of oncological outcomes in the long term. The proposed method not only expands the capabilities of laparoscopic surgery in renal cancer with low-level venous tumor thrombus but also opens prospects of integration with contemporary minimally invasive technologies.

CONCLUSION

Implementation of transmesenteric approach into clinical practice allows for a significant increase in safety and reproducibility of laparoscopic nephrectomy with thrombectomy in patients with level 0-I venous tumor thrombus. The use of this technique reduces operative time, decreases the extent of organ mobilization and the risk of their injury, and minimizes the likelihood of postoperative complications. This method can be recommended for widespread adoption in oncourology centers and is considered promising for adaptation to robot-assisted surgery platforms.

ADDITIONAL INFORMATION

Ethics approval. The study was approved by the LEC of Granov Russian Research Center of Radiology and Surgical Technologies (extract from protocol № 03-11/2021 dated 18.11.2021).

Consent for publication: All patients signed a written informed consent form.

Study funding. The study was the authors’ initiative without external funding.

Conflict of interest. The authors declare that there are no obvious or potential conflicts of interest associated with the content of this article.

Contribution of individual authors. Mirzabekov M.K.: concept development, statistical analysis, text preparation. Shkolnik M.I., Bogomolov O.A.: text editing and approval.

All authors gave their final approval of the manuscript for submission, and agreed to be accountable for all aspects of the work, implying proper study and resolution of issues related to the accuracy or integrity of any part of the work.

Statement of originality. No previously published material (text, images, or data) was used in this work.

Data availability statement. The editorial policy regarding data sharing does not apply to this work.

Generative AI. No generative artificial intelligence technologies were used to prepare this article.

Provenance and peer review. This paper was submitted unsolicited and reviewed following the standard procedure. The peer review process involved 2 external reviewers.

¹ Мирзабеков М.К., Богомолов О.А., Школьник М.И. Патент РФ «Способ лапароскопической радикальной левосторонней нефрэктомии с тромбэктомией из нижней полой вены». Доступно по: https://patents.google.com/patent/RU2803686C1/ru
